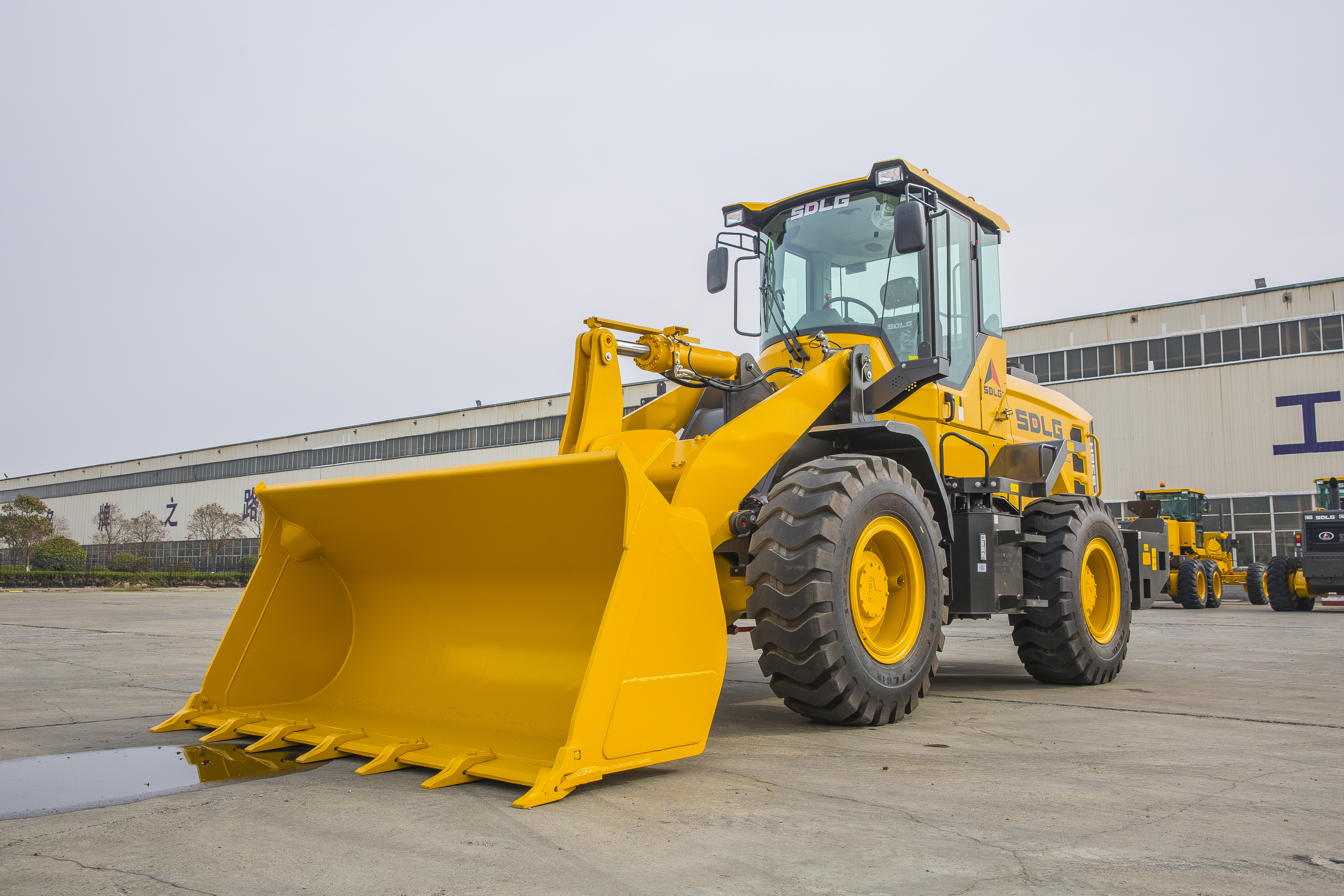

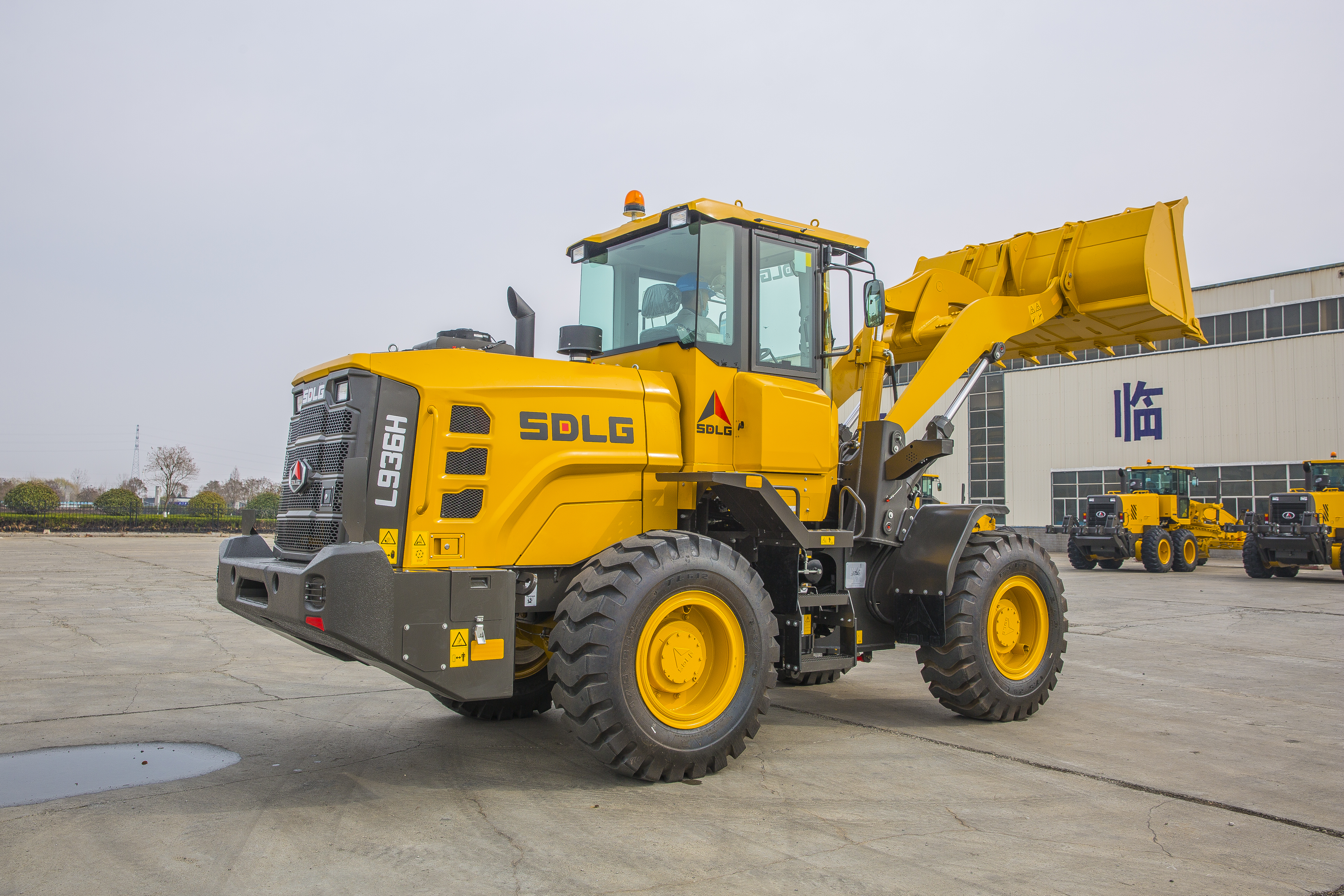

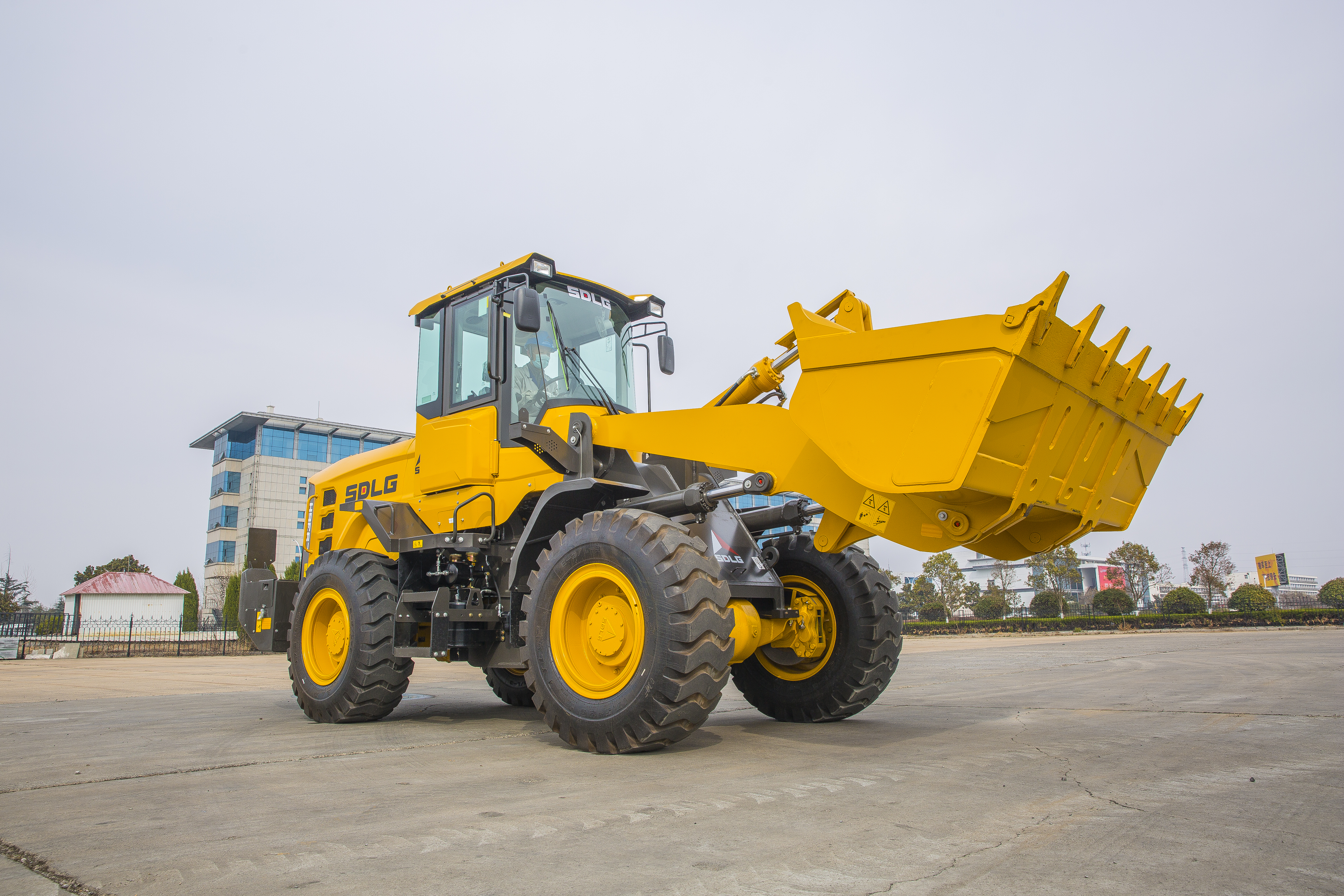

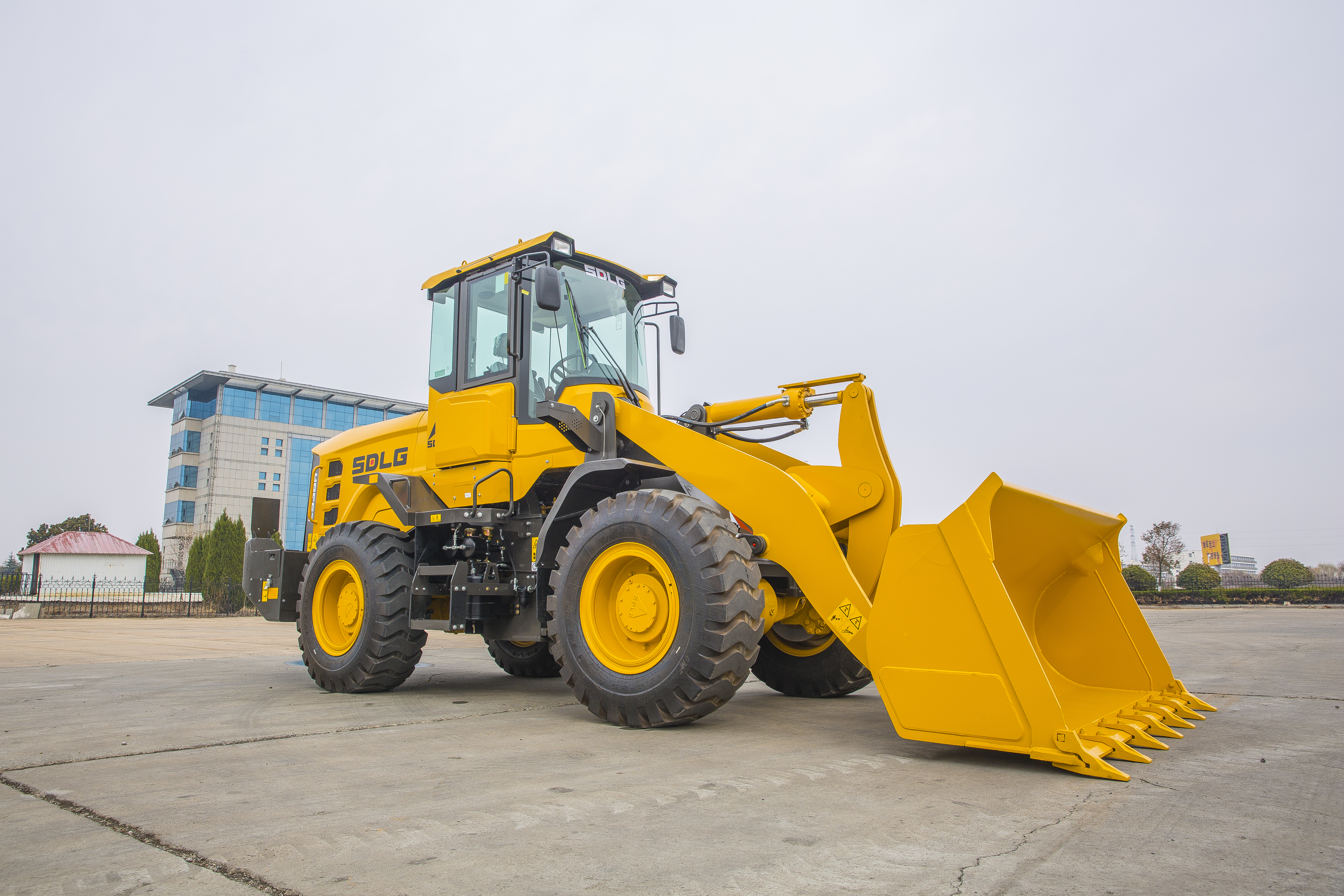

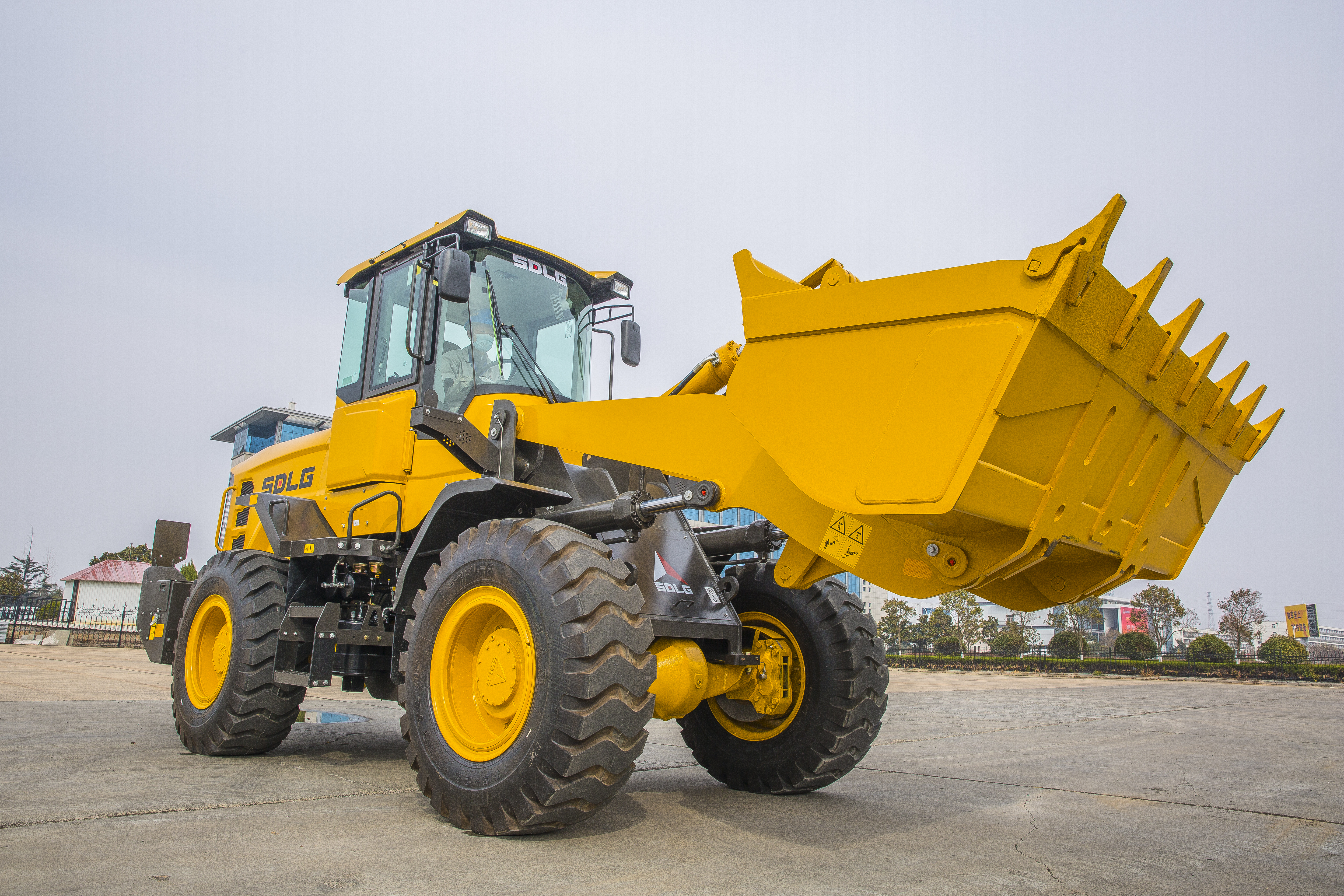

Wheel Loader L936H(Stage V)

Rated Load (kg)

3500

Standard Bucket Capacity (m³)

2.1

Operating Weight (kg)

11300/11550

Rated Power (kW)

99
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features

Reliability: Weichai WP4.6N engine, compliant with Euro 5 emission standards, delivers powerful performance. Equipped with high-precision oil filters and air filters, it meets the operational requirements of harsh working conditions with high reliability.

Energy-saving: Three-level power modes (heavy load P, medium load S, light load E) are set, enabling customers to choose according to working conditions for energy conservation and high efficiency.

Comfort and Convenience: High-grade suspended seat, adjustable in multiple angles and dimensions; control buttons, arranged vertically on the right front for easy access; heating and cooling air conditioning for comfortable riding, with a heating and cooling storage box; color multifunctional instrument, luxurious and high-end.

Technical Parameter
Rated Load (kg) 3500
Length×Width×Height (mm) 7285×2520×3340
Wheel Base (mm) 1865
Max.Dumping Height (mm) 2930
Dumping Distance (mm) 1140
Steering Angel (°) 37
Emission Standard Stage V
Max.Tractive Force (kN) ≥100
Max.Breakout Force (kN) ≥96
Fuel Tank Capacity (L) 160
Standard Bucket Capacity (m³) 2.1
Operating Weight (kg) 11300/11550
Rated Power (kW) 99
Engine Model Weichai WP4.6NG135E670
