Rated Load (kg)
Standard Bucket Capacity (m³)
Operating Weight (kg)
Rated Power (kW)

Utilities

Heavy infrastructure

Quarries & Aggregates

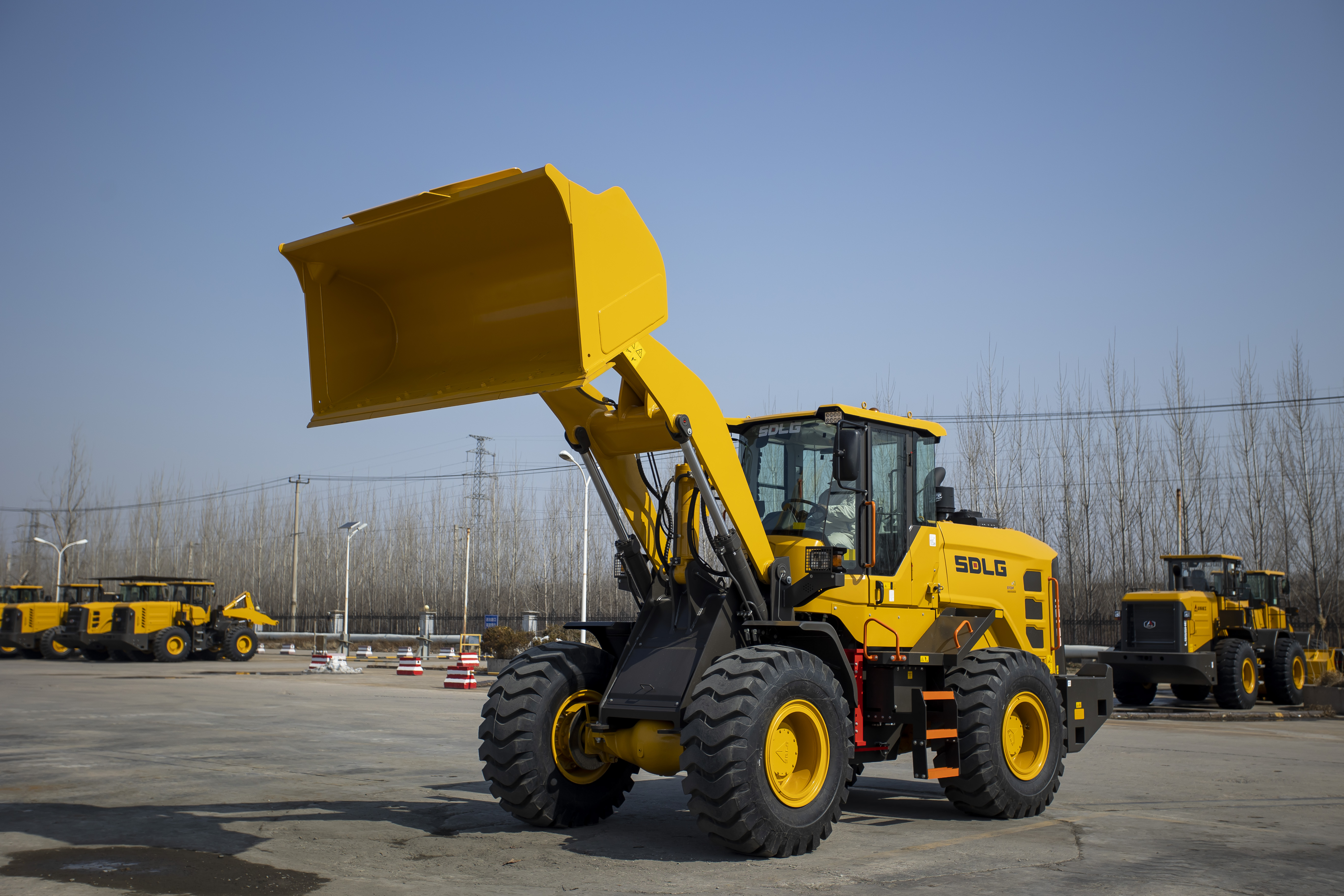

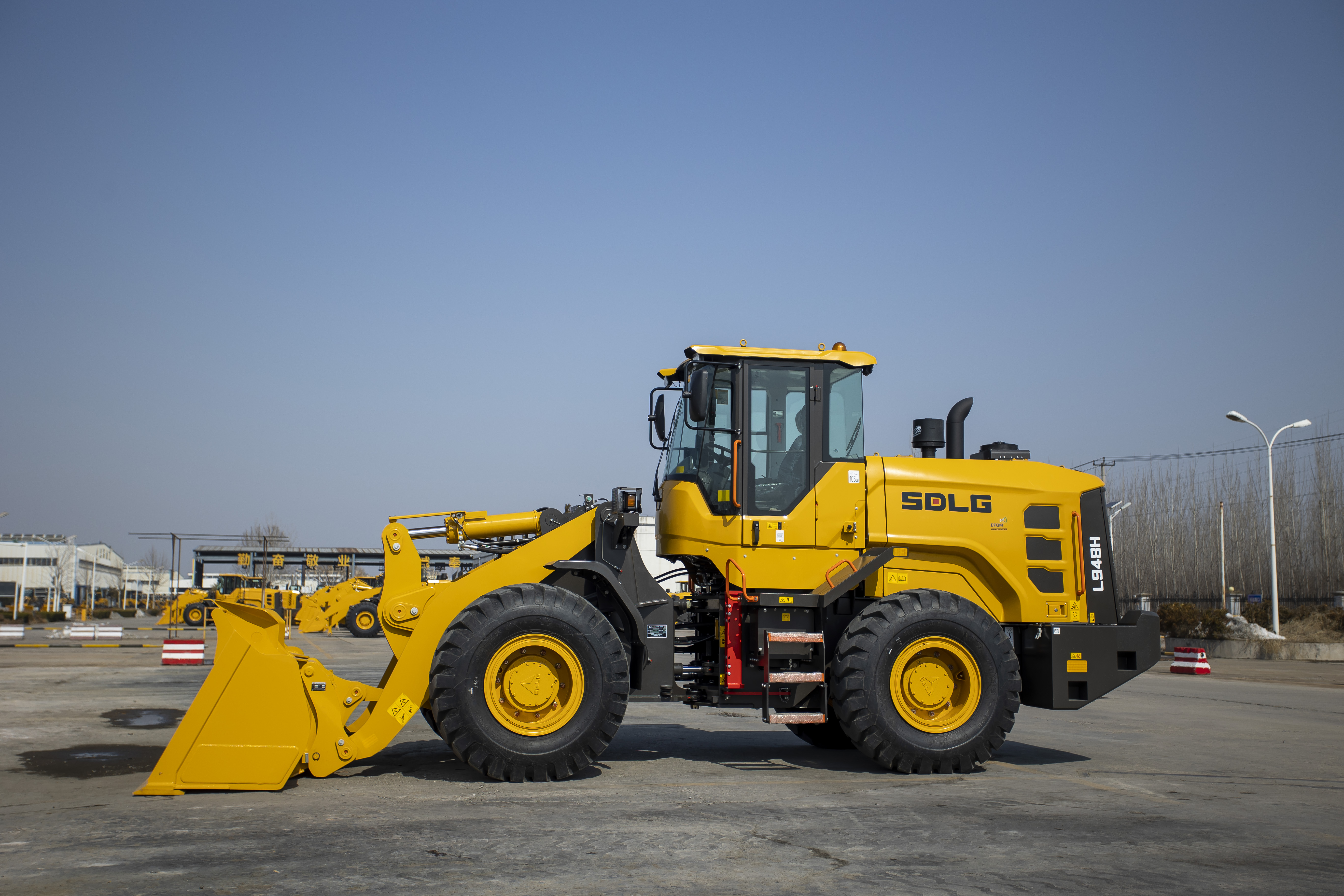

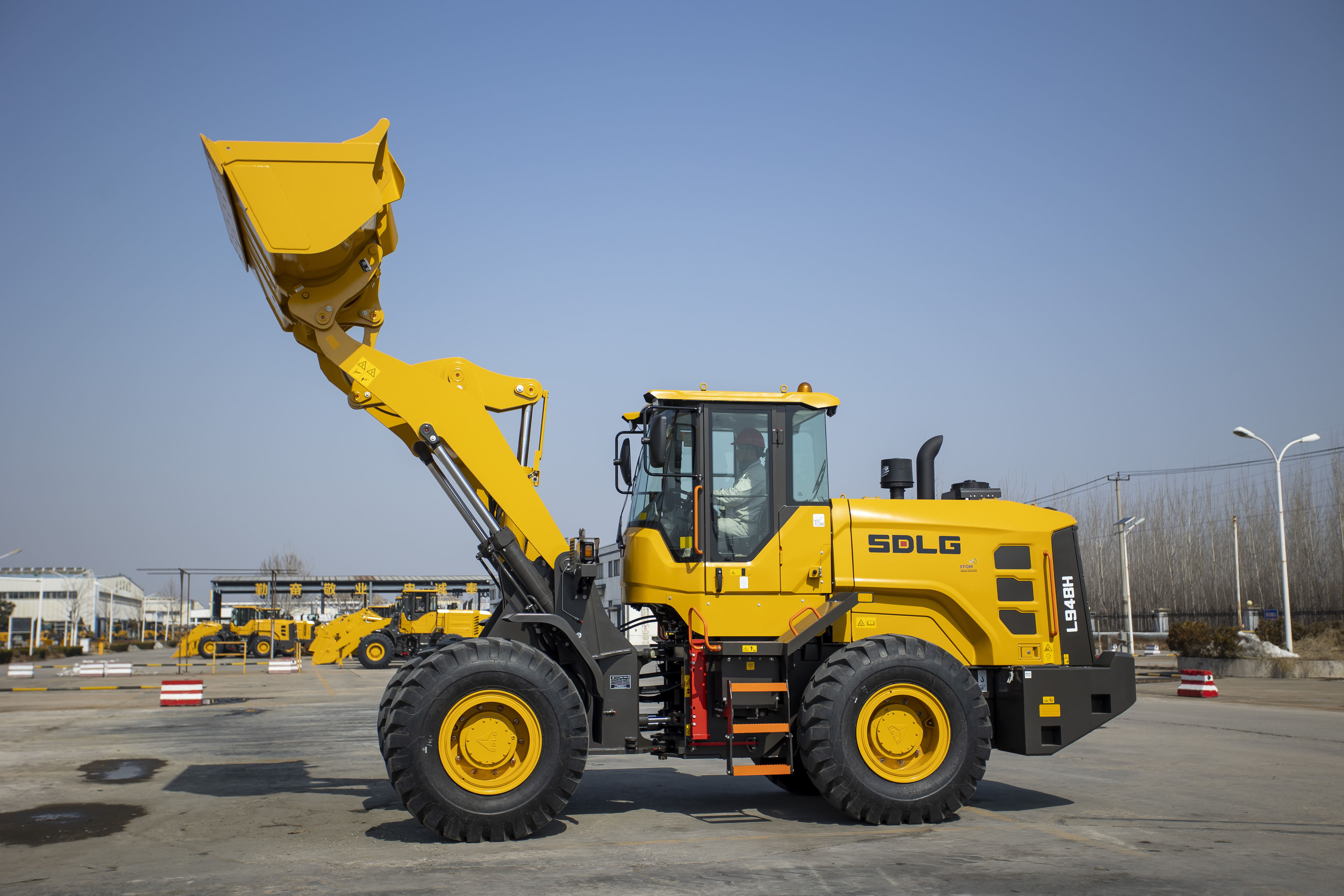

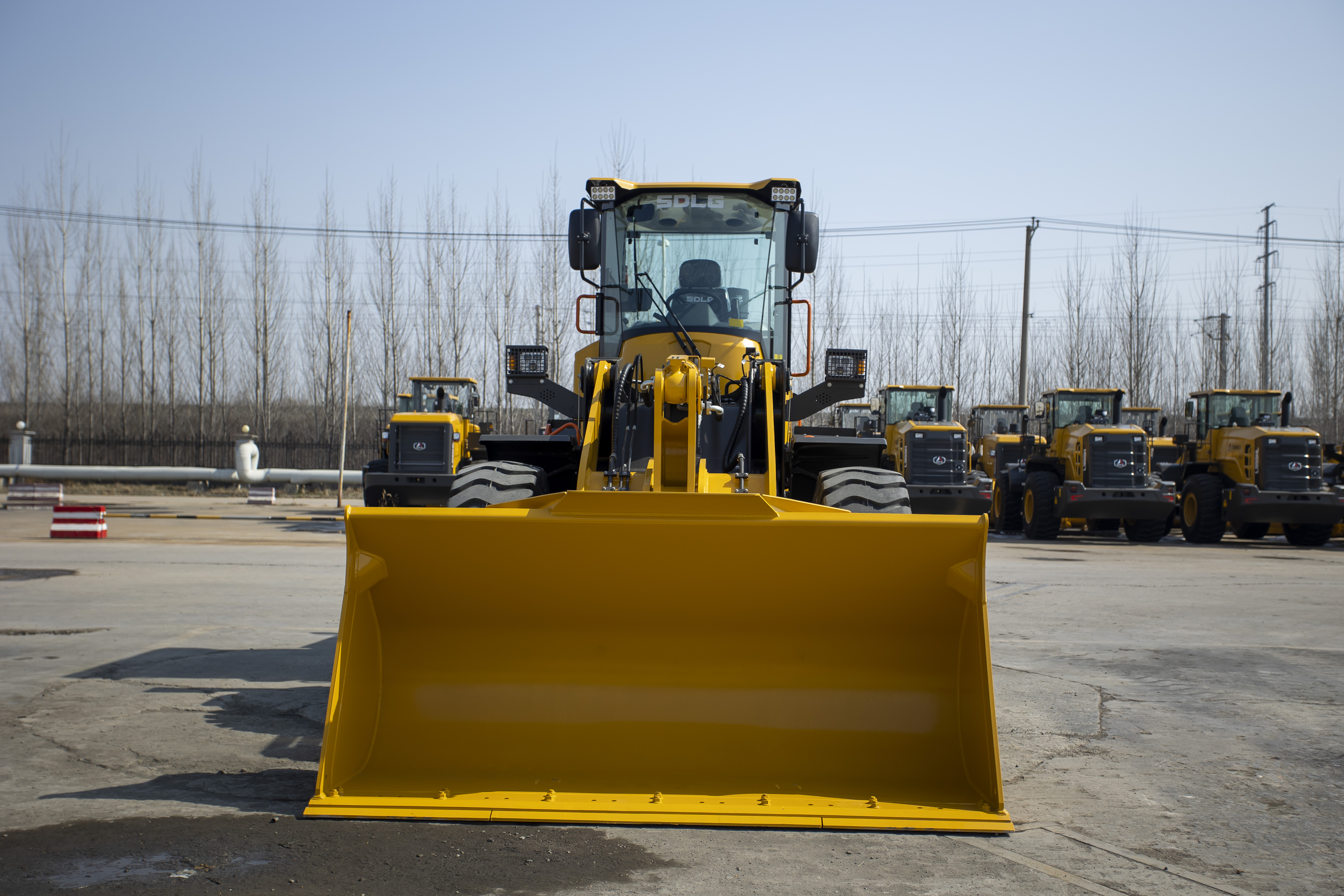

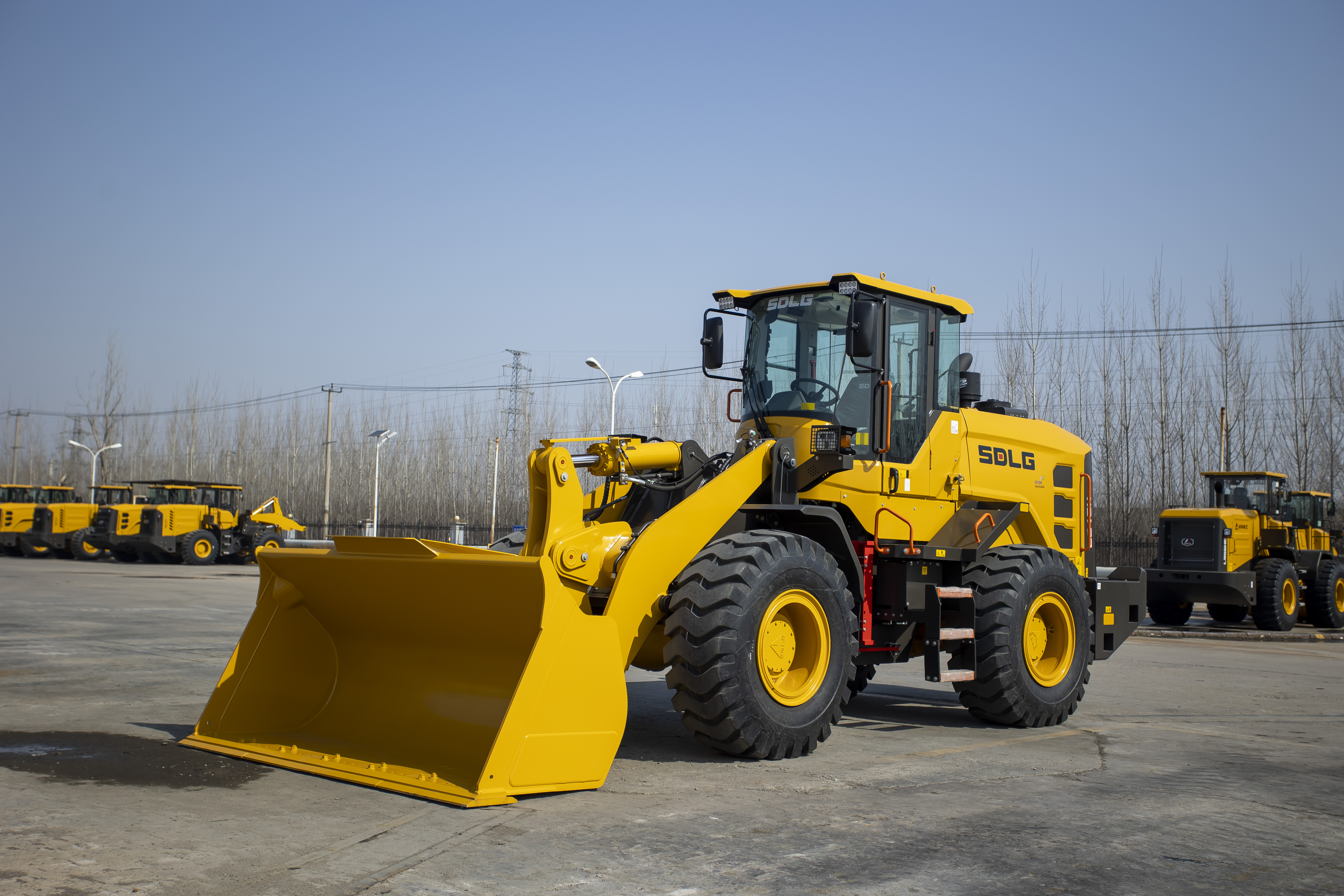

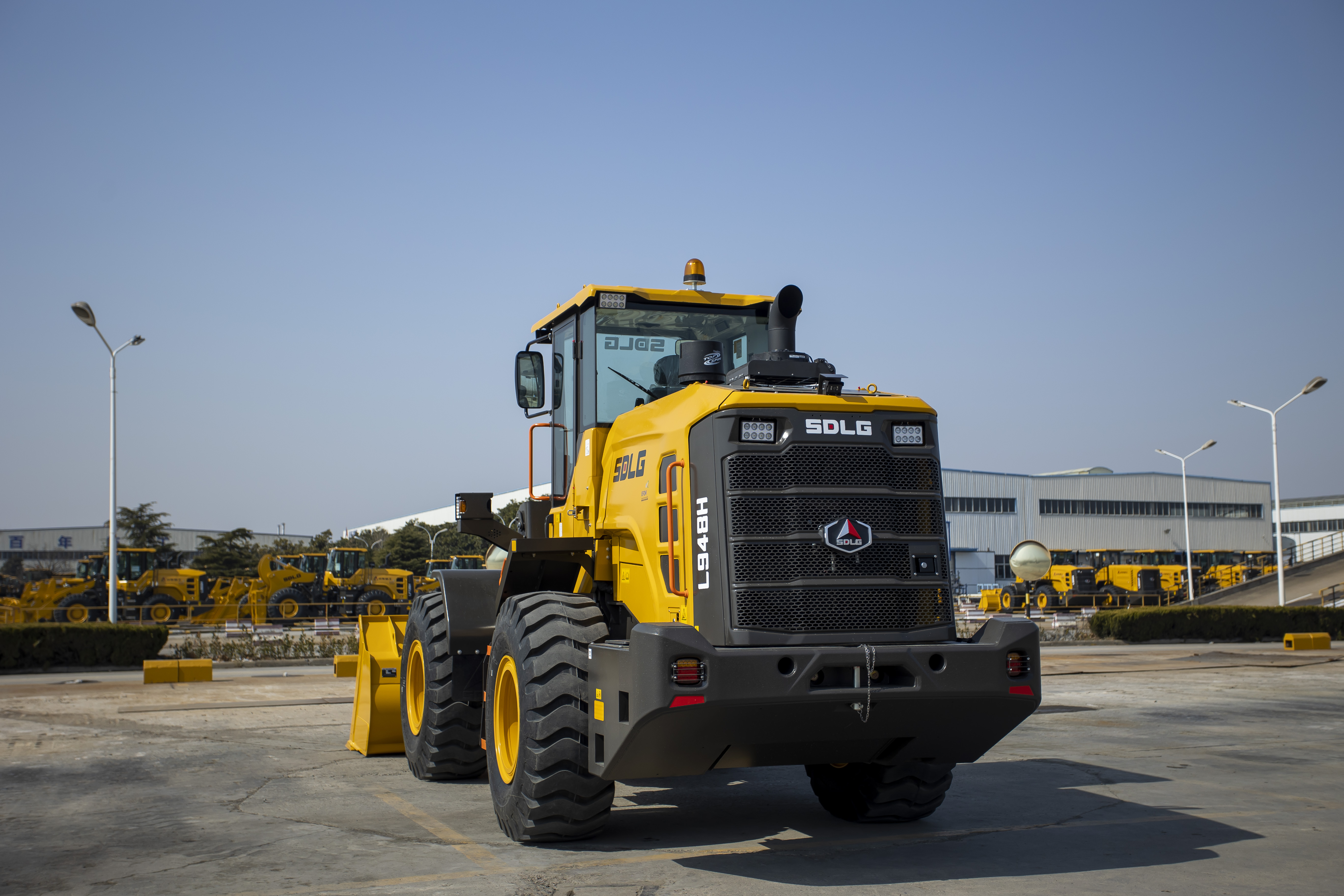

High efficiency: rated load of 4.5 tonnes, wheelbase of 3100mm, high engine power, manoeuvrability and high efficiency.
High-end: H series deluxe cab, Keypad integrated operation, variable hydraulic system, reversing camera, emergency steering, independent cooling, the whole machine configuration high-end atmosphere.
Reliable: Cummins engine, VRTE205 gearbox, SDLG reinforced drive axle, hydraulic and electrical components of well-known brands, stable and reliable quality of the whole machine.
Beautiful: H series new family appearance, cab arc glass, automotive-grade moulding rear cover, the whole machine streamlined design, appearance is stable and generous.
| Rated Load (kg) | 4500 |
| Length×Width×Height (mm) | 7900×2762×3400 |
| Wheel Base (mm) | 3100 |
| Max.Dumping Height (mm) | 2775 |
| Dumping Distance (mm) | 1255 |
| Steering Angel (°) | 37 |
| Emission Standard | Stage V |
| Max.Tractive Force (kN) | 110 |
| Max.Breakout Force (kN) | ≥125 |
| Fuel Tank Capacity (L) | 200 |
| Standard Bucket Capacity (m³) | 2.5 |
| Operating Weight (kg) | 14400 |
| Rated Power (kW) | 129 |
| Engine Model | Cummins B6.7 |
