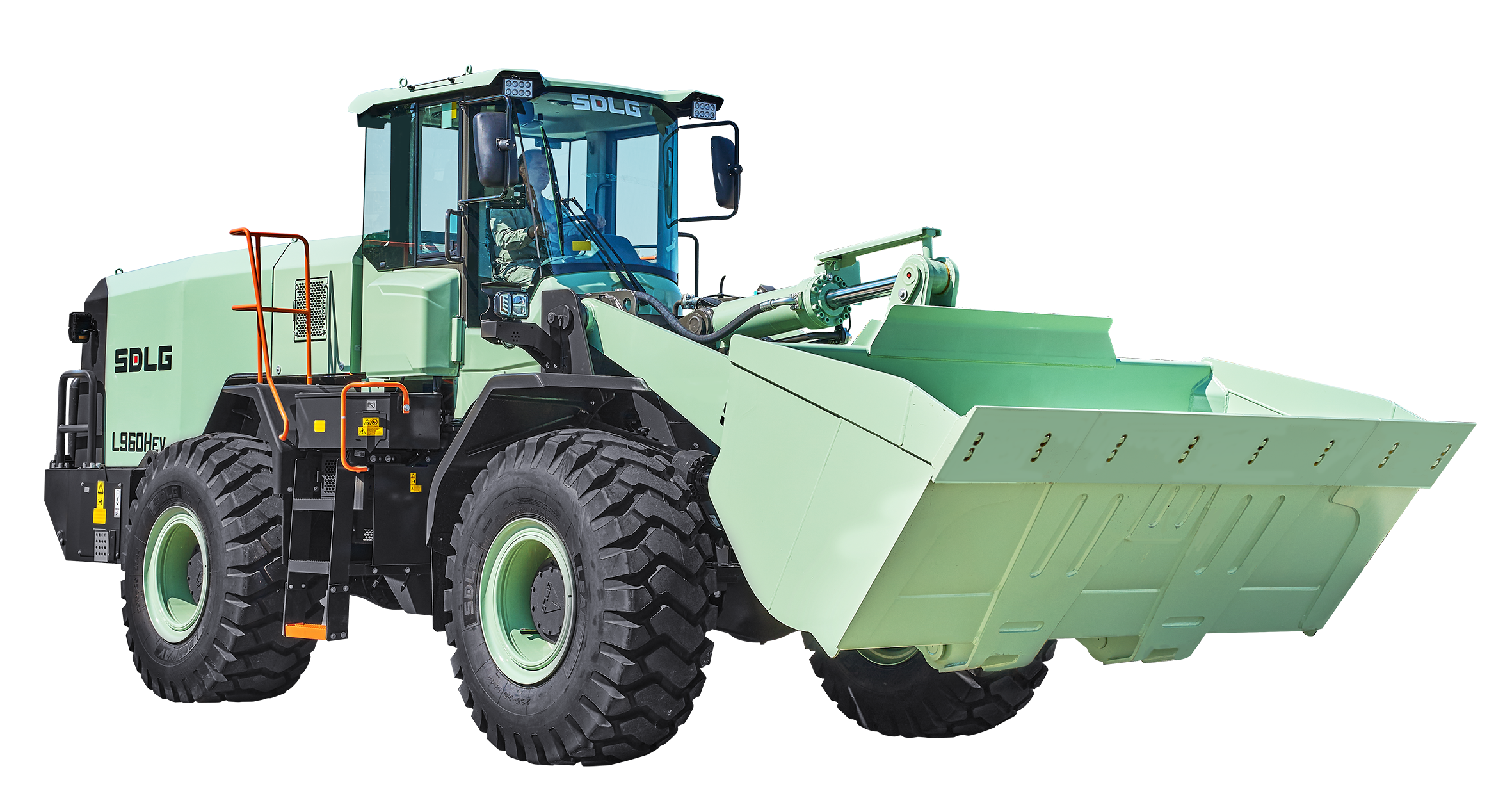

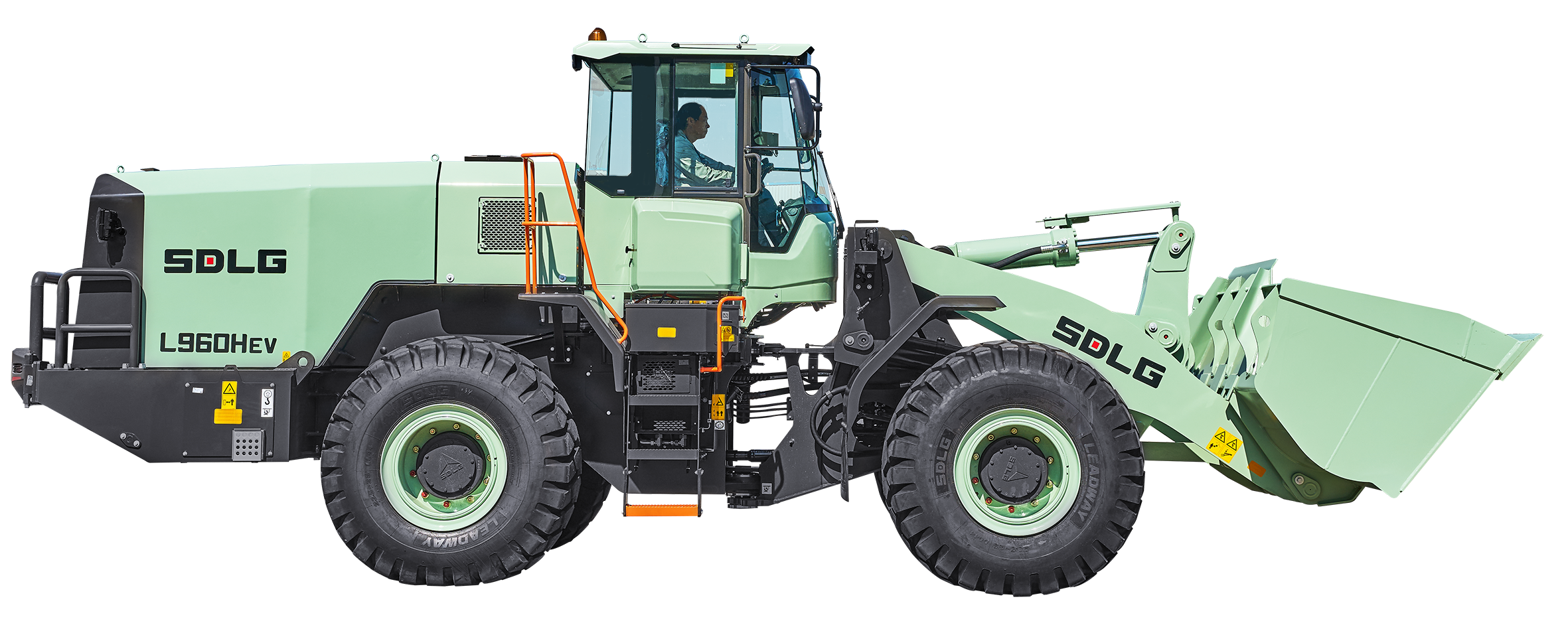

Electric Product L960HEV

Operating Weight (kg)

20050

Bucket Capacity (m³)

2.7-5.0

Rated Load (kg)

6000

Rated Power (kW)

205
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features
  • Zero-Emission Electric Power: Powered by a high-capacity 423 kWh battery, the L960HEV operates with zero tailpipe emissions, significantly reducing its environmental footprint and enabling work in indoor or environmentally sensitive areas.

  • Impressive Performance & Instant Torque: The electric drivetrain delivers a peak power of 400 kW, providing instant torque for strong breakout force (217 kN) and excellent tractive effort (170 kN), ensuring rapid and powerful loading cycles.

  • High Efficiency & Lower Operating Costs: Electric operation eliminates fuel costs and reduces maintenance requirements for the engine and exhaust systems. A fast DC charging capability and up to 8.5 hours of endurance support continuous operation.

  • Productive & Agile Design: A quick total cycle time of ≤9.6 seconds (lift, dump, lower) enhances productivity. Its compact dimensions and good maneuverability make it suitable for a variety of job sites.

  • Reliable & Proven Technology: Built on a robust platform with a planetary power-shift transmission and high-pressure hydraulic systems, ensuring the reliability and durability expected in demanding applications.

Technical Parameter
Operating Weight (kg) 20050
Bucket Capacity (m³) 2.7-5.0
Rated Load (kg) 6000
Battery Type LGNE
Battery Capacity(kWh) 423
Rated Power (kW) 205
Dumping Distance (mm) 1340
Working Pressure Of Working Device (MPa) 21
Charging Type DC
Peak Power (kW) 400
Battery Voltage (V) 614.4
Battery Endurance Life (h) 8.5h
Max.Dumping Height (mm) 3320
Length×Width×Height (mm) 9280×2895×3460
Wheel Base (mm) 3450
