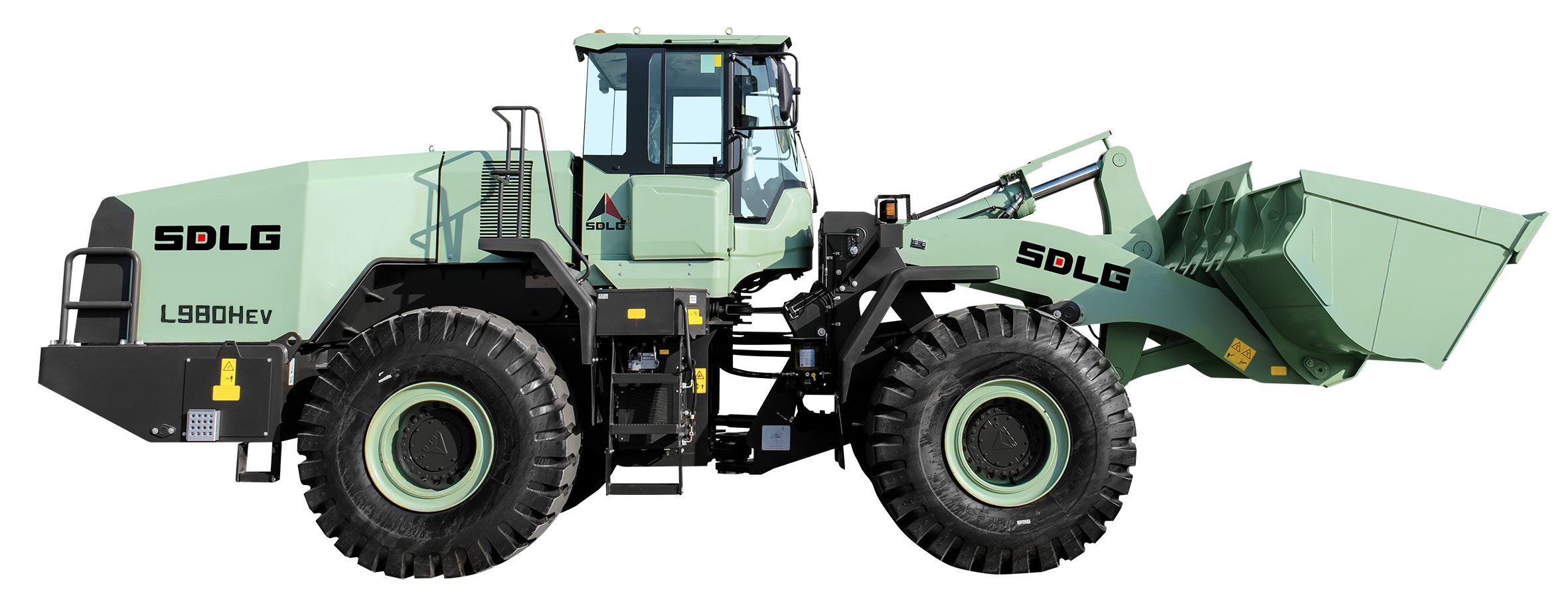

Electric Product L980HEV

Operating Weight (kg)

26600

Bucket Capacity (m³)

3.6-7.0

Rated Load (kg)

8000

Rated Power (kW)

297.1
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features
  • Powerful Zero-Emission Operation: Utilizing a high-capacity 423 kWh battery system, the L980HEV produces zero on-site emissions, making it ideal for sensitive environments, indoor applications, and operations with strict sustainability goals.

  • Exceptional Electric Performance: The advanced electric drivetrain generates a formidable 540 kW of peak power, delivering a strong breakout force (≥205 kN) and high tractive effort (226 kN) for rapid, powerful, and responsive loading cycles.

  • High Productivity and Versatility: With a fast cycle time (≤10.1s) and a versatile 4-speed forward/reverse transmission, it ensures high operational efficiency and adaptability across various site conditions and material types.

  • Lower Total Cost of Ownership: Electric operation eliminates diesel fuel costs and drastically reduces maintenance needs associated with traditional engines, leading to substantially lower running costs and increased uptime.

  • Built for Durability and Stability: Designed with a robust chassis, high-pressure hydraulic systems (25.5 MPa), and a substantial operating weight, the L980HEV ensures the stability, strength, and reliability required for continuous heavy-duty work.

Technical Parameter
Operating Weight (kg) 26600
Bucket Capacity (m³) 3.6-7.0
Rated Load (kg) 8000
Battery Type LGNE
Battery Capacity(kWh) 423
Rated Power (kW) 297.1
Dumping Distance (mm) 1295
Working Pressure Of Working Device (MPa) 25.5
Charging Type DC
Peak Power (kW) 540
Battery Voltage (V) 614.4
Battery Endurance Life (h) 6
Max.Dumping Height (mm) 3650
Length×Width×Height (mm) 9630×3115×3620
Wheel Base (mm) 3550
