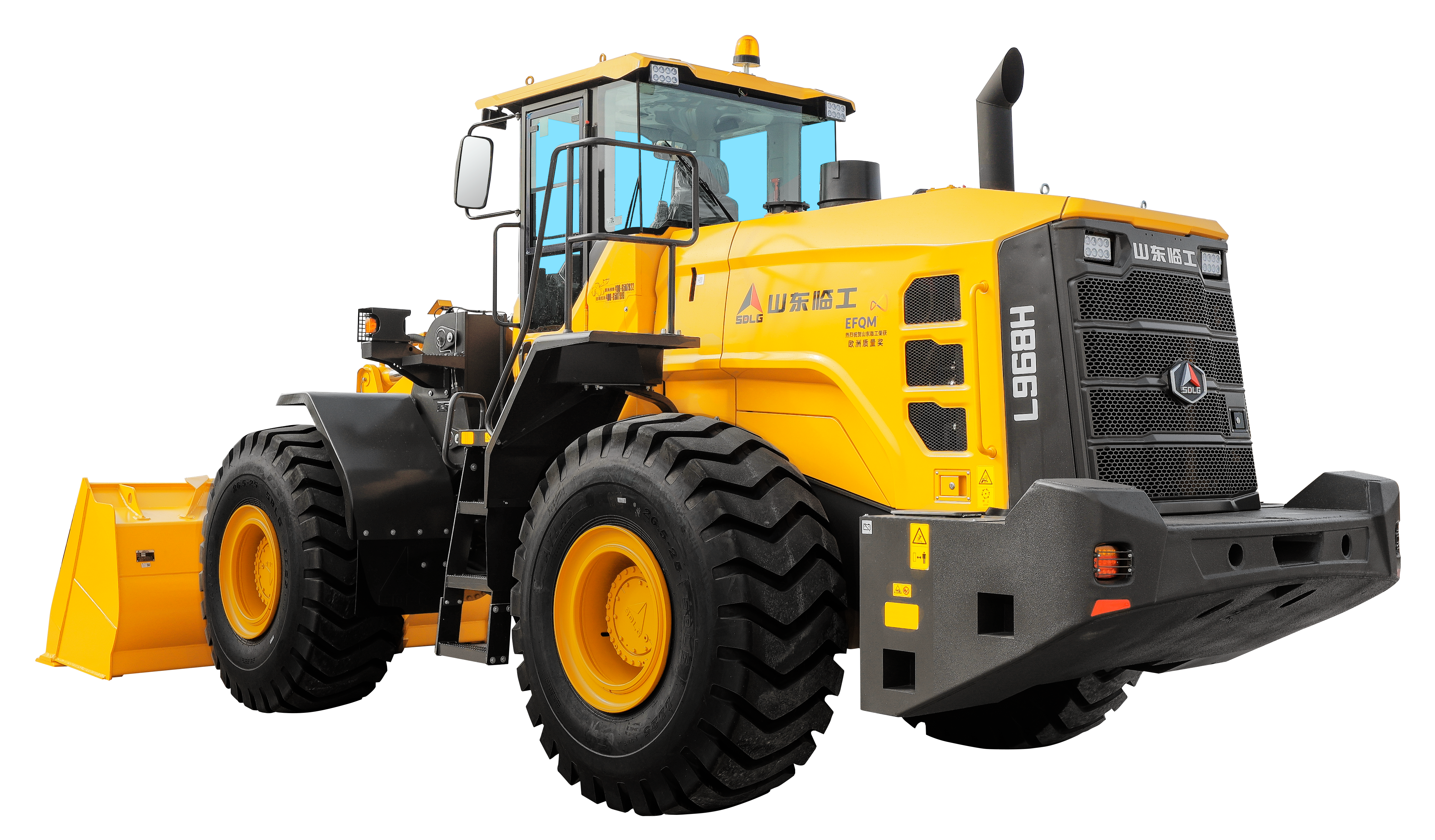

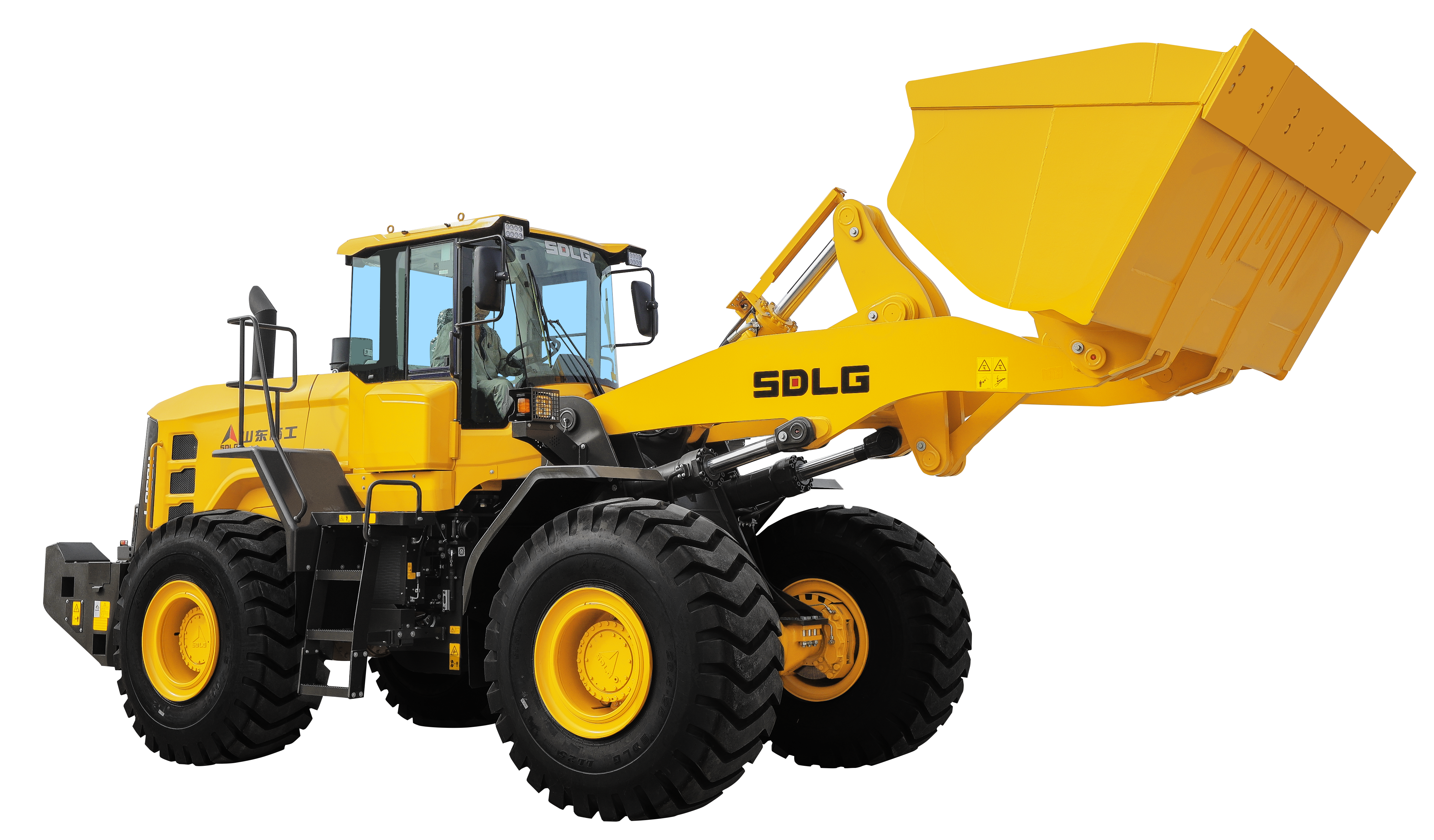

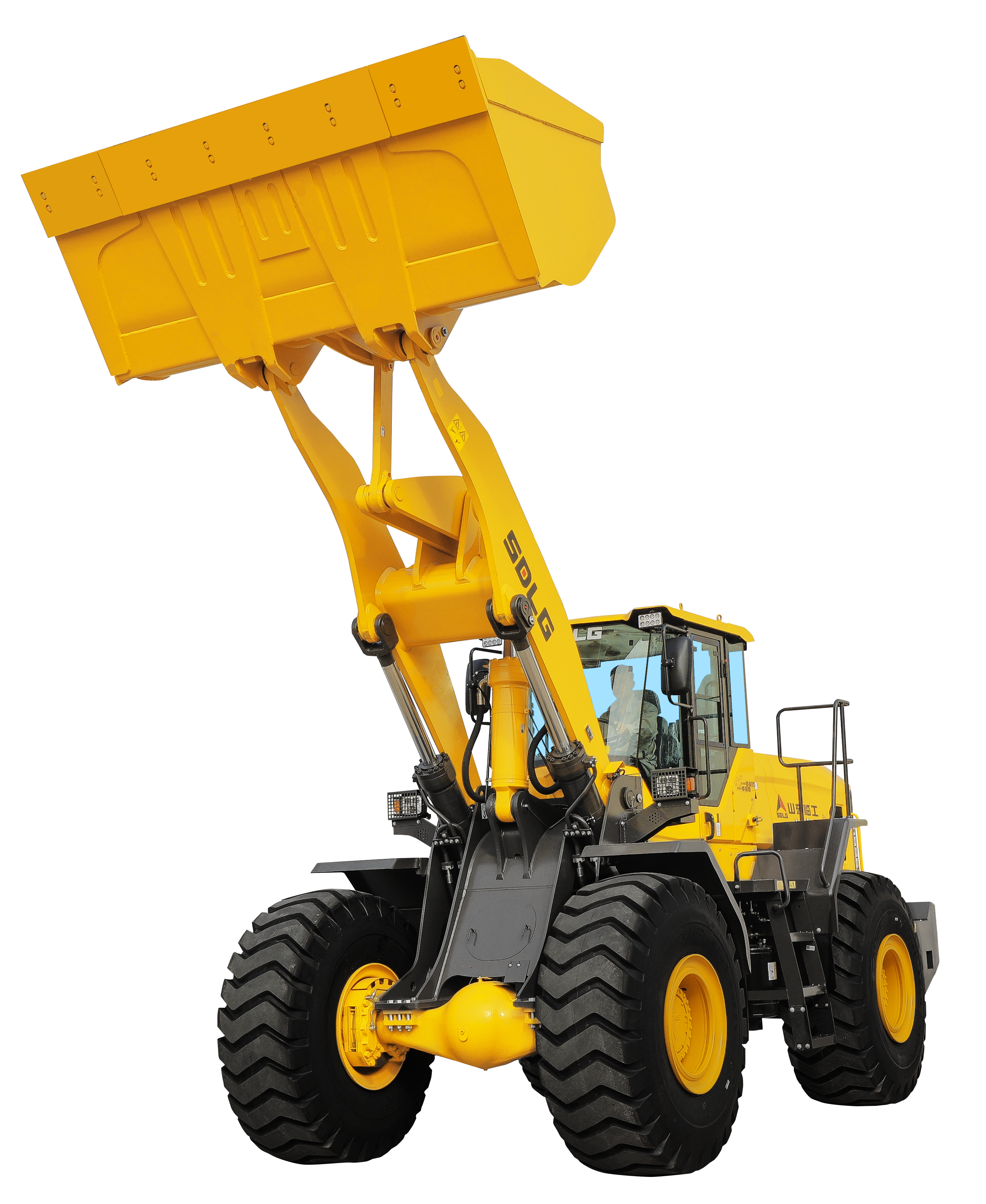

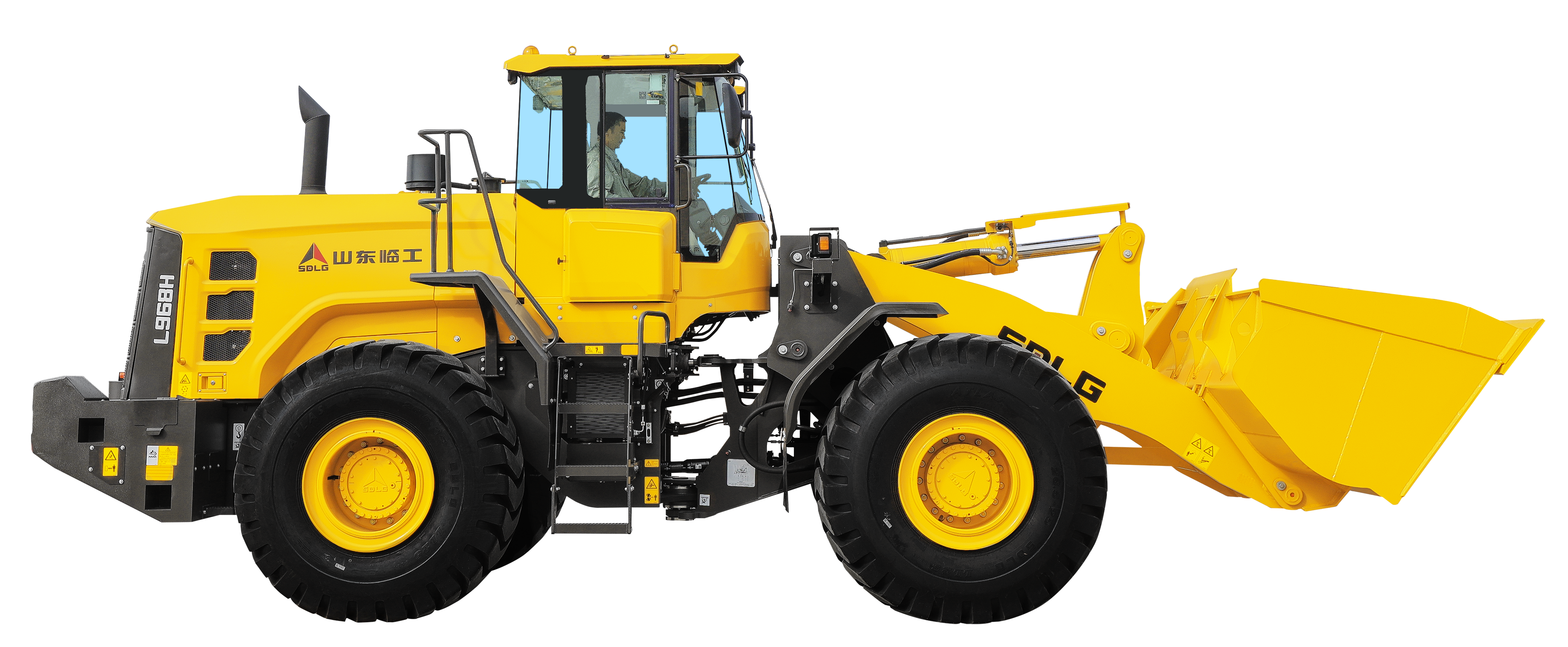

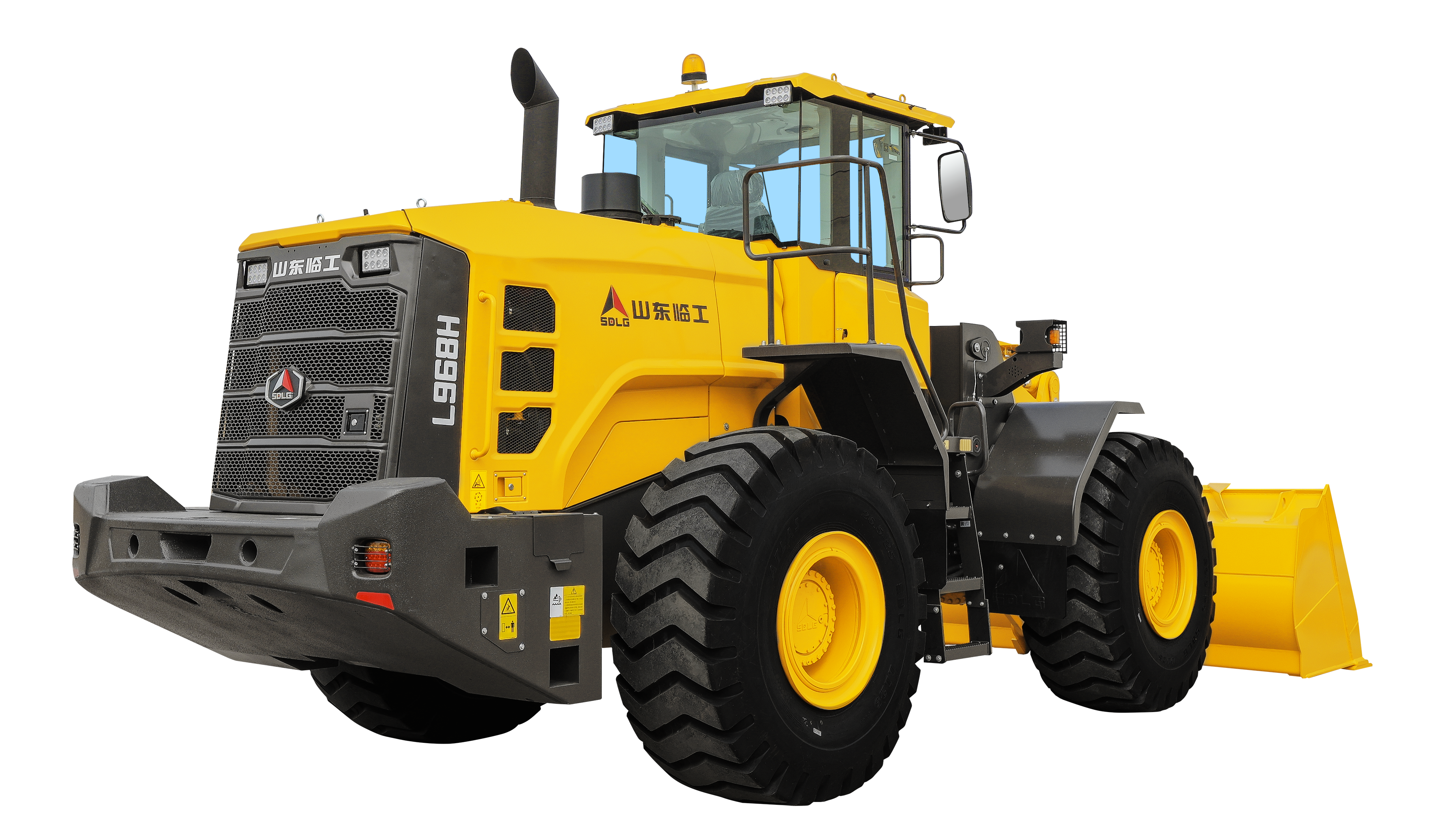

Wheel Loader L968H
Rated Load (kg)
Standard Bucket Capacity (m³)
Operating Weight (kg)
Rated Power (kW)
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
The L968H is a long-wheelbase loader with a brand-new appearance.
This product features a long wheelbase and strong lifting force, capable of excavating materials such as metal ores, metal ore powder, and large stones.
It is widely applied in working conditions such as mining, ports, docks, steel mills, and large-scale projects.
Technical Parameter
| Rated Load (kg) | 6300 |
| Length×Width×Height (mm) | 8870ⅹ2925ⅹ3510 |
| Wheel Base (mm) | 3500(1750|1750) |
| Max.Dumping Height (mm) | 3170 |
| Dumping Distance (mm) | 1230 |
| Steering Angel (°) | 38 |
| Emission Standard | GB 20891-2014 (stage Ⅲ) |
| Max.Tractive Force (kN) | 180 |
| Max.Breakout Force (kN) | ≥215 |
| Fuel Tank Capacity (L) | 350 |
| Standard Bucket Capacity (m³) | 3.0～6.0 |
| Operating Weight (kg) | 20850 |
| Rated Power (kW) | 178 |
| Engine Model | Weichai WP10G240E342 |
