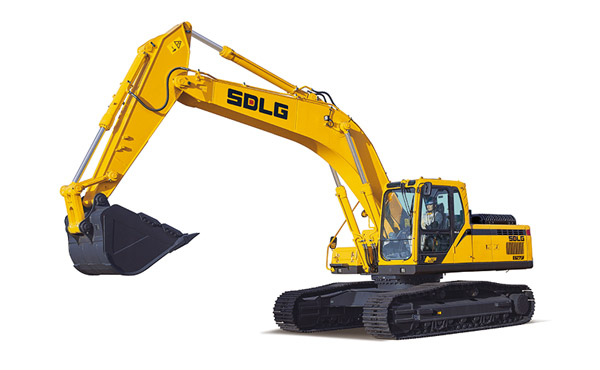

SDLG E6275F is a medium positive flow hydraulic excavator which focuses on heavy load working condition of earthwork and gravel. Widely used in mining, construction sites, bridge engineering, pipeline laying and other conditions.
High efficient and low fuel consumption
Positive flow control with shorter response time and quicker action speed
Optimized working mode and output power to reduce engine speed
Well control coordination
Positive control system, response quickly, compound movements coordination
Reliable and durable
Strengthened structural parts and improved electrical components
| Operating Weight(kg) | 26500 |
| Bucket capacity(m³) | 1.60 |
| Rated power(kW) | 159 |
| Overall width(mm) | 3190 |
| Overall height(mm) | 3040 |
| Overall length(mm) | 4650 |
| Engine model | BF6M1013-22T3R/3 |
| Emission Standard | GB20891-2014 |
| Max. excavation force(kN) | 176 |
| Swing speed(r/min) | 11.3 |
| Traveling speed(km/h) | 3.3/5.5 |
| Max. digging radius(mm) | 10260 |
| Max. digging depth(mm) | 6980 |
| Max. digging height(mm) | 9690 |
| Fuel tank capacity(L) | 470 |
